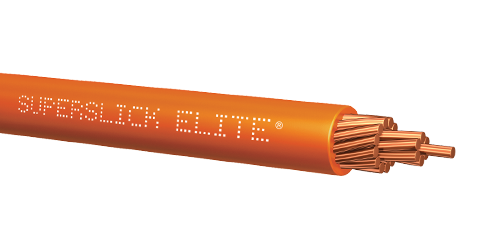

XHHW-2 / RW90

Features

  • Sizes 14 AWG - 1000 KCMIL
  • Permitted for 600- and 1000-volt applications
  • SuperSlick Elite® technology
  • Sequential Foot Markings (sizes 250 KCMIL and larger)
  • Sunlight resistant in all colors (sizes 8 AWG and larger)
  • Suitable for wet, damp and dry locations
  • RoHS compliant
  • UL Listed E-177544

Description

XHHW-2/RW90 is intended for general purpose application utilized in raceways and underground in raceways for service, feeders and branch-circuit wiring in accordance with the NEC. It is permitted for 600-volt and 1000-volt applications and suitable for applications requiring low-leaking circuits and a dielectric constant of 3.5 or less. Pulling heads are available on sizes 8 AWG and larger.
